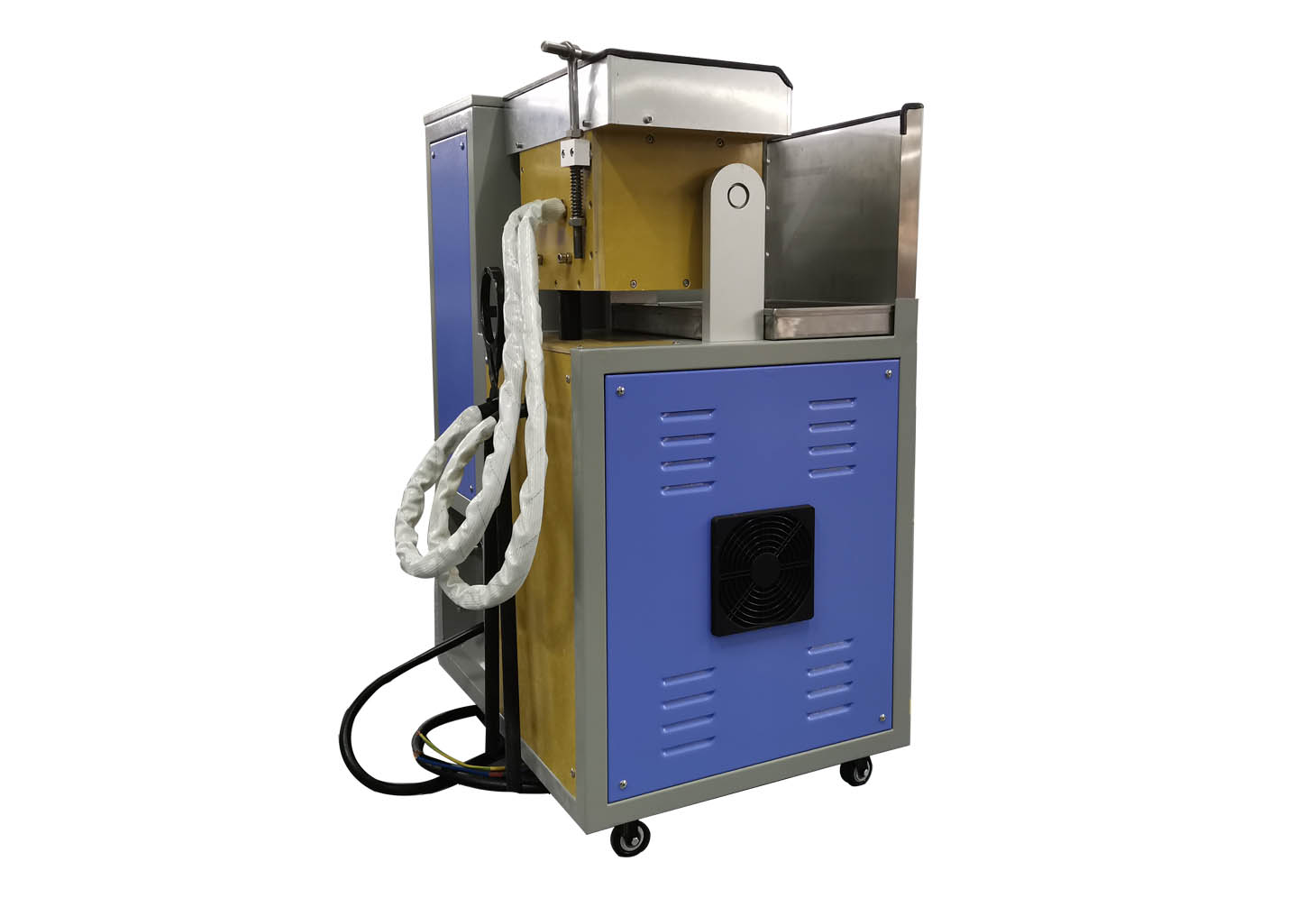

Tilting Gold Smelting Furnace

Gold /Silver Smelter

This Type gold smelting furnace is configured to melt different size,shape,and type of precious metal sample like gold,silver, copper, palladium..etc ,the melting capacity: 1-20 kg. This machine can be equipped the temperature control system, which can help you control the temperature going at real time.If you want to control the working temperature of the melting process, it is your best choice.

Features

1. Melting capacity:1-20kg
2. Input voltage:three phase 380V,50/60HZ
3. Melting time: 3min-5 min/batch

[ GOLD SMELTING FURNACE]

CDOCAST  Small  Tilting  Gold  Smelting furnace is designed for the Capacity from 10kg-100kg gold, silver, copper …etc metal melting. The tilting  Gold Smelter is built with the latest solid-state technology with the IGBT  Mould From Germany. The furnaces are available with power supplies from high frequency to medium frequency and ranging from 5kW to 160kW.  Our tilting smelting furnace is available for the material of  Gold, Silver, Copper, Bronze, and Aluminum using Graphite crucible or  SIC crucibles, what’s more,  Cooldo Gold Smelter can be set up for melting ferrous metals as well.  In addition to the standard production, custom systems hydraulic tilting melting furnace can be customized-built with melting capacity up to 350kg To meet the requirement of the gold mine customers

[Types of tilting melting furnace] there are mainly two models for your choice,  one is manual tilting, which means tilt the furnace body by hand, this furnace is economical and easy to operate, and usually is suitable for the small capacity from 6-15kg。 this model is easy to operate and smaller in size, very suitable for the starters of the gold industry.

for the big capacity from 15kg-100kg, we will recommend the motor chain tilting melting furnace, which the tilting system is driven by the motor installed in the furnace body, the tilting speed can be adjusted and tilt angle can be up t0 180degree, The pouring point of liquid metal will be fixed in one position, which is very suitable for precision casting. which model is more suitable for your application, feel free to contact our engineer team.

.

Cooldo Tilt melting furnaces Systems can be equipped with optional Thermocouples or Infrared pyrometers for accurate temperature control of the materials being heating and melted. or Can add the Plc Control System to make the operation more advanced and convenient. The Water Cooling Pump is designed inside the machine.

These induction furnaces are ideal for melting metals such as Steel, Iron, Copper, Brass, Gold, Platinum, Silver, Nickel, Palladium, and their alloys.

manual-tilting-2

Manual tilting without workers picking the crucible out of the heating coil, which increases safety and facilitates stable operation

manual-tilting-pump

CDOCAST 1-15kg manual tilting gold smelting furnace can be used with graphite and quartz crucibles can melt almost all metals.

manual-tilting-detail-1

Equipped with a water pump, just need to connect the water and electricity which can operate the furnace, (for long time operation,water chiller is recommended  )

Parameter of gold smelting furnaces:



Model numberCDO-MT26CDO-MT27CDO-MT28CDO-MT29
Applicable metalGold, Silver, Copper, Brass, Bronze, and their alloysGold, Silver, Copper, Brass, Bronze, and their alloysGold, Silver, Copper, Brass, Bronze, and their alloysGold, Silver, Copper, Brass, Bronze, and their alloys
Voltagesingle phase/3p, 220V, 50/60Hz3P, 380 V, 50/60Hz3P, 380 V, 50/60Hz3P, 380 V, 50/60Hz
Power15 kw (adjustable)20 kw (adjustable)25 kw (adjustable)30 kw (adjustable)
Weight78 kg78 kg78 kg78 kg
Max capacityGold: 4 kg Silver:2kgGold: 6-8 kg Silver:3-4kgGold: 8-10 kg Silver:4-5kgGold: 10-15 kg Silver:5-8kg
Melting time2-5 min3-6 min3-7 min3-8 min
Dimension(LWH)620*500*1050mm620*500*1050mm620*500*1050mm620*500*1050mm
Max temperature1600℃1600℃1800℃1800℃
Temperature control k-typeOptionalOptionalOptionalOptional
Water pumpEquippedEquippedEquippedEquipped

Manual Tilting Gold Smelting Furnace 1-10kg
