Small Hydraulic Tilting Metal Melting Furnace

hydraulic tilting metal melting furnace

COOLDO small hydraulic metal melting furnace is designed specifically for small and medium-sized enterprises. The capacity of the furnace is about 50-350kg, which can smelt precious metals, non-ferrous metals, and ferrous metals. Igbt induction heating Technology allowed the rapid melting speed which takes only about 30 mins for each melting batch, welcome to inquiry us.

Features

1, Hydraulic tilting design with steel frame furnace body
2, Melting capacity from 50kg-350kg
3,Rapid Casting Speed,30mins per batch
4:24 Hrs continuously working ability

[Small Hydraulic Tilting Metal Melting Furnace]



Metal Melting furnace
Metal Melting furnace

COOLDO small hydraulic tilting metal melting furnace is designed specifically for small and medium-sized enterprises. The capacity of the furnace is from about 50kg-350kg, which can smelt precious metals, non-ferrous metals, and ferrous metals. which has a wide range of applications for all melting requirements.

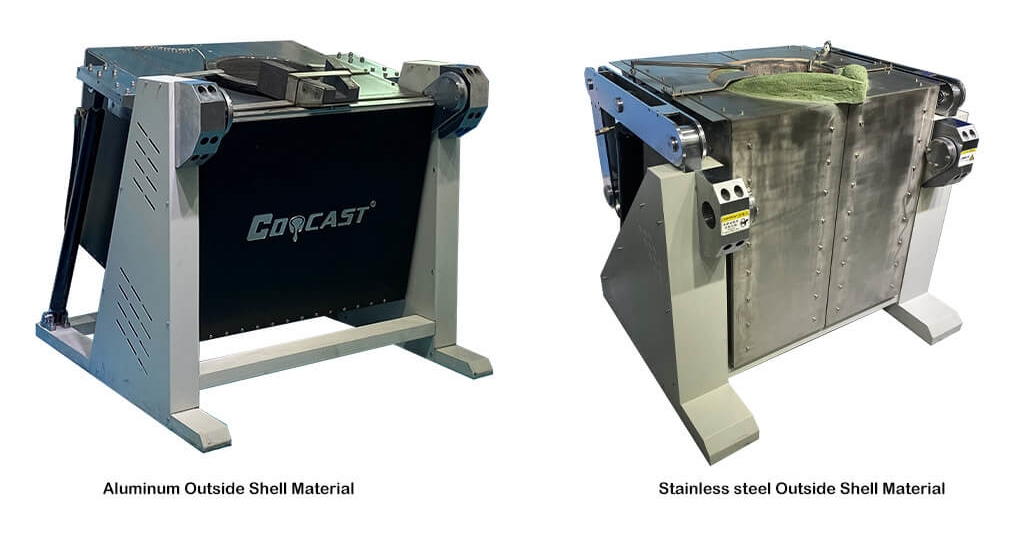

This small frame of the hydraulic metal melting furnace is made of stainless steel, so it has a very durable and high-quality structure. The cast and fire-resistant top and bottom blocks as well as the unique two-half structure can effectively shield the magnetic field to prevent the shell from heating during the metal heating process.

All the parts of Cooldo small hydraulic tilting metal melting furnace are of high quality. The induction coil is composed of a high-conductivity, thick-walled copper tube. The power cabinet is equipped with a Siemens touch screen, and the entire operating parameters can be monitored on the touch screen. The S-type thermocouple makes the entire melting temperature controllable. what is more, The argon protection device is very useful for some metals that are easily oxidized, and you can control the gas flow through the flow control button on the power panel

This small hydraulic tilting metal melting furnace is controlled by a hydraulic cylinder for the entire tilting process, with an inclination of 95 degrees to ensure that the molten metal liquid can be completely poured out and there is no residue. For safety reasons, each furnace has a remote tilting control to ensure that workers can control the furnace tilting process within some distance.

small hydraulic tilting furnace
small hydraulic tilting furnace details

Power Supply Parameter of Hydraulic titling Metal Melting Furnace

Model CDO-HT45 CDO-HT70 CDO-HT90 CDO-HT110 CDO-HT160
MAX input power 45KW 70KW 90KW 110KW 160KW
MAX input current 68A 105A 135A 168A 240A
Input voltage Three-phase 340V ~420V 50/60Hz
Oscillation frequency 1K~20KHz
Requirement of cooling water Hydraulic pressure ≥0.3Mpa
Flow rate ≥20L/Min
Temperature of water ≤45℃

Melting Capacity Parameter of Hydraulic Titling Metal Melting Furnace

Model Fe, ss Cu, Au, Ag Al, Al-alloy
CDO-HT45 18kg 50kg 18kg
CDO-HT70 25kg 80kg 25kg
CDO-HT90 40kg 120kg 40kg
CDO-HT110 50kg 150kg 50kg
CDO-HT160 100kg 250kg 100kg
Remark: Above melting capacity sheet for general reference; Melting duration: When the crucible is hot,20~30min./workload; When the crucible is cold(first melt),40~50min./ workload.

Hydraulic Tilting Metal Melting Furnace Advantage:

1:Adopt IGBT electromagnetic induction heating technology, saving 20% energy compared with KGPS; High melting speed, steady smelting process.

2 The Small Metal Melting Furnace comes with the ability of 24-hour continuous work to meet the production needs of customers;

3:Design steel body Frame, a durable and strong structure.

5. Hydraulic tilting design makes the pouring process convenient and safe; It’s helpful for spot-pouring and obtaining high-quality ingot.

6. Safe and reliable, which is very simple maintenance, without professional workers  can carry out daily maintenance of equipment;

7. Compact, Economical, Easy Access Package incorporates a design with convenient front access.

Video Of  Small Hydraulic Tilting Metal Melting Furnace:

Hydraulic Titling Small Induction Furnace
