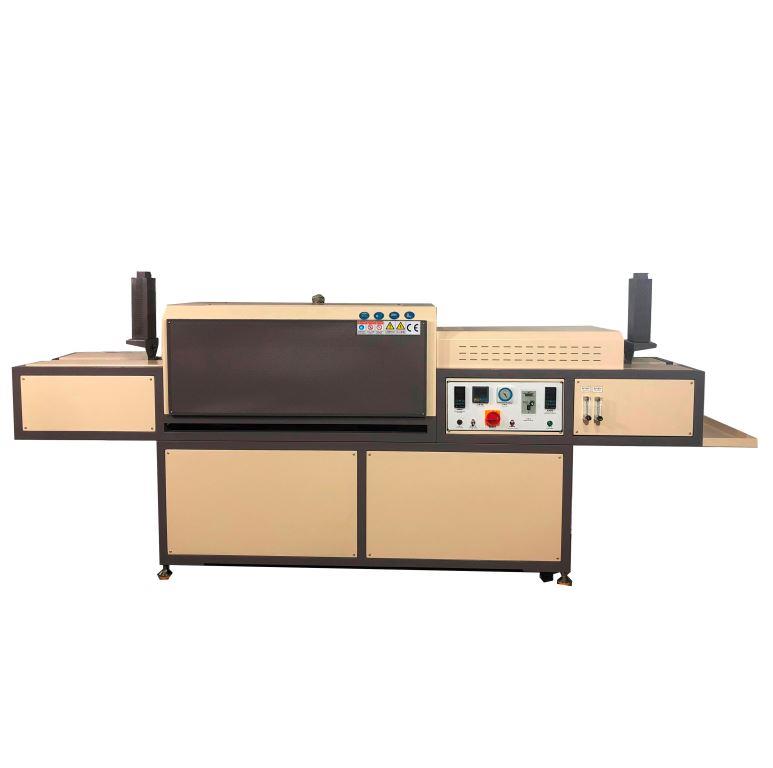

Mesh belt annealing & Welding furnace

Mesh belt annealing & Welding furnace

COOLDO Mesh belt annealing & Welding furnace is designed for hardware industry, especially jewelry industry. It applies to K gold and silver link parts, and the welding of chains;
Its combined frame is easy to install and dismantle, high-quality and stable pipe heating system, having a mechanical transmission with highly pure protective gas and it is equipped with a purification device of nitrogen produced via ammonia decomposition. And it is a good equipment for bright annealing, solution treatment, continuous welding, and lead welding of different metals and stamping parts.

Features

Ask A Quote Now >>

Products Show

Mesh belt annealing & Welding furnace:



Mesh belt annealing & Welding furnace is designed for hardware industry, especially jewelry industry. It applies to K gold and silver link parts, and the welding of chains; Its combined frame is easy to install and dismantle, high-quality and stable pipe heating system, having a mechanical transmission with highly pure protective gas and it is equipped with a purification device of nitrogen produced via ammonia decomposition. And it is a good equipment for bright annealing, solution treatment, continuous welding, and lead welding of different metals and stamping parts.



Mesh belt conveyor heat treatment furnace:

Parameter



Model number CDO-30MB CDO-40MB
Power source Three phase 380V±10%, 50/60Hz Three phase 380V±10%, 50/60Hz
Power 16 kw 18 kw
Max temperature 1000°C 1000°C
Applicable metal K Gold and silver K Gold and silver
Heating rate 700°C/80min 700°C/80min
Ammonia decomposition heating time 880°C/80min 880°C/80min
Welding speed 1m/min 1m/min
Dimension 300(L)*50(W)*130(H)cm 400(L)*50(W)*130(H)cm
Weight 400kg 480 kg
