Small Induction melting furnace

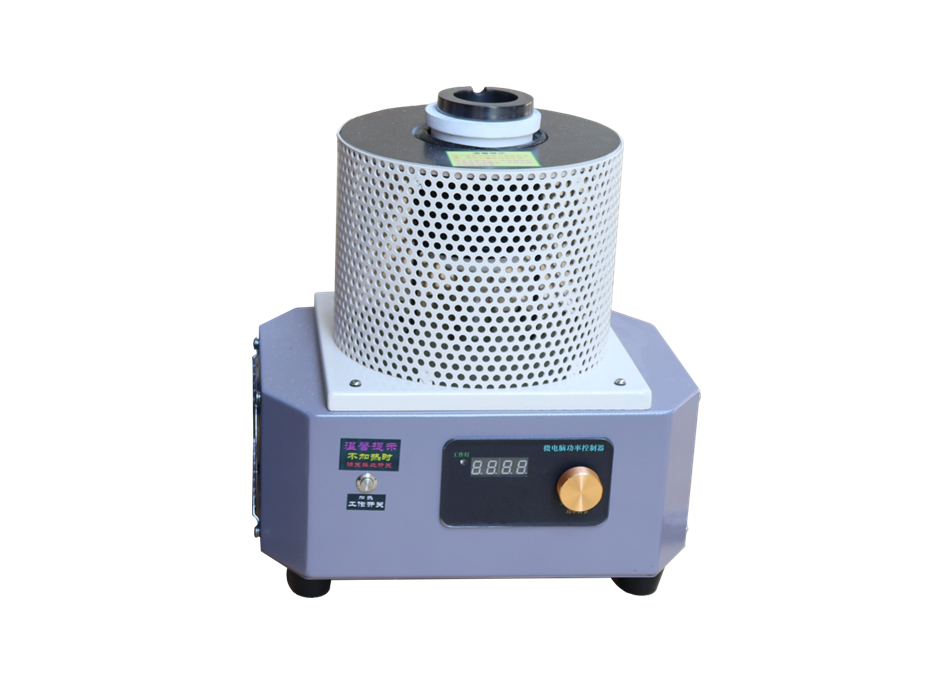

11-2kg Protable Gold Melting Furnace1

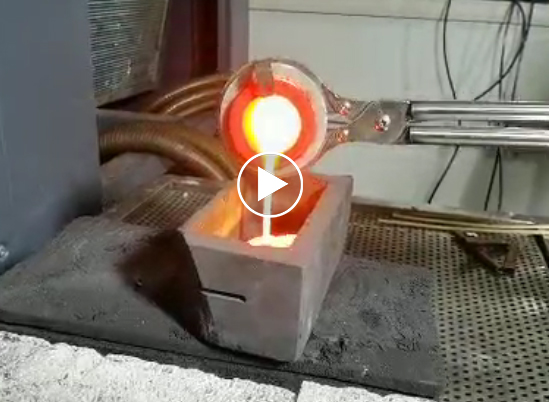

1-2kg portanble gold melting furnace

[1KG 2KG Small  Protable gold melting furnace]



This Small  Protable gold melting furnace Comes With Electric Crucible Furnace For Silver Brass 1600 Degree

The small induction melting furnace adopts medium frequency induction heating, DSP digital control circuits, the actual heating temperature can reach 1600 ℃ (2900 ℉) Used for refining precious metals (gold, silver, copper,  iron, etc.).Using the patented magnetic heat technology driving technology, the operation is simple, the melting speed is fast,low energy consumption, the machine volume is small, the outside part is low heat storage.It is a new high performance portable gold melting furnace.

Small  Protable gold melting furnace Feature:



  1. Advanced metal melting equipment for gold, silver, copper and some other precious metals
  2. Apply IGBT Mould technology, can continuous working with 24hrs
  3. 100% full loading, with ability of 24hrs continuous working
  4. Compact design with small size and low weight, maximum reduce
  5. Quick temperature rise, only 3 minutes can melt one batch, electricity saving, low melting cost with high efficiency
Mini Induction Melting Furnace Technical Parameters
Voltage200v – 235v ,single phase
Working Frequency50hz – 60hz
Power input:1KG 3500W
Support 100%full load
System protection:

Double IGBT Over heat protection,Lack water protection.

Non – pot circuit detection function. Automatic many kinds of internal fault detection procedures, such as driving frequency error automatic alarm protection, such as a variety of protection circuits.

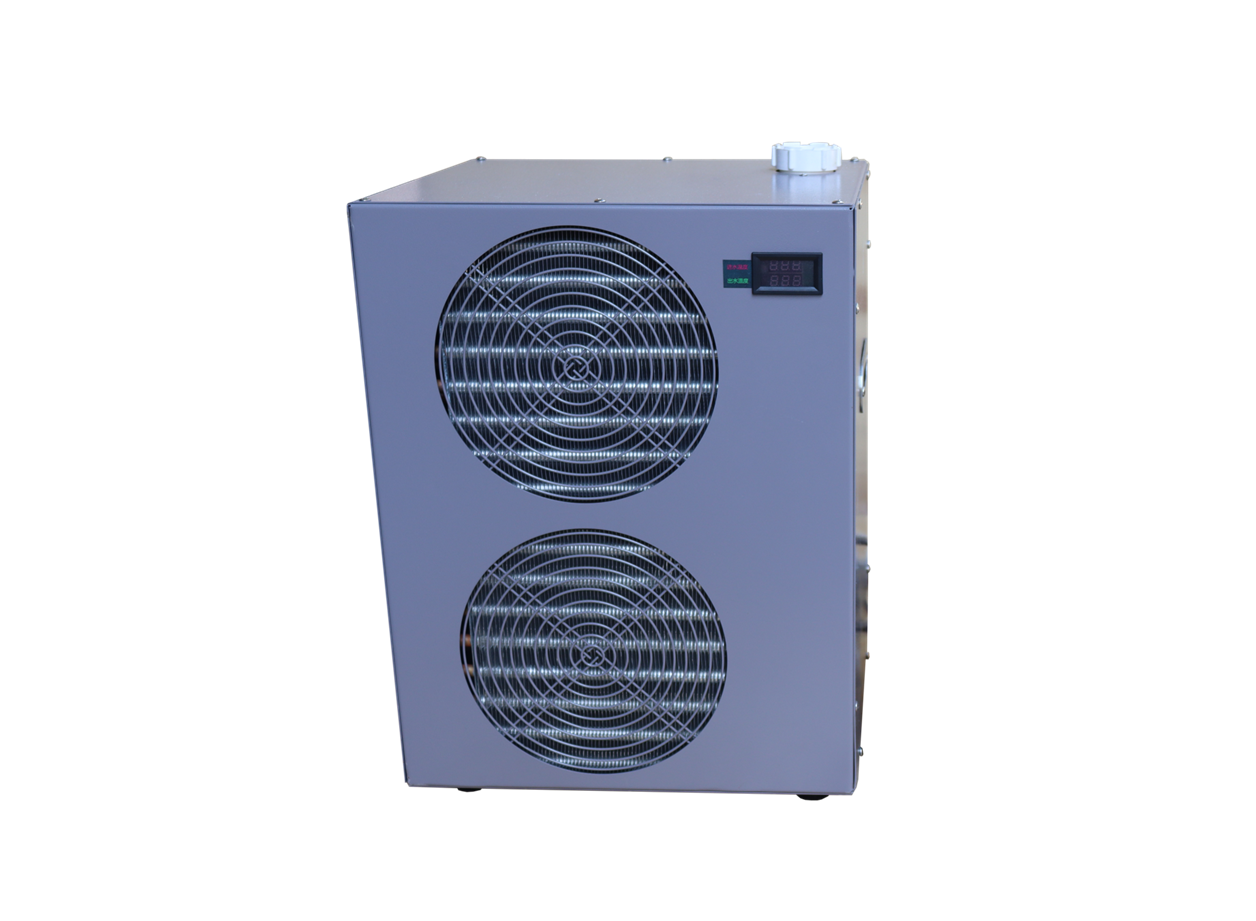

Water Cooling system:External water cooler, or direct tap water, only a minute 1L of water flow can be used normally.
Melting Temp:The actual temperature can be heated up to more than 1600 ℃, the temperature can be raised rapidly, the electricity can be saved, the smelting cost is low, the cost performance is high
Melting Speed:500 grams of copper. Silver. Gold. About 6 minutes.Graphite crucibles are necessary
DimensionAbout (315long * 295 wide * 310 high) innovative design, small size, light weight.

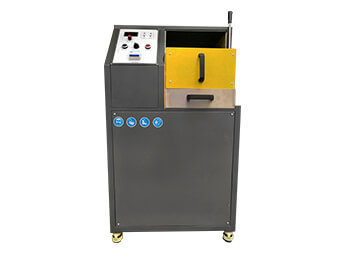

11-15kg Integrated Small Induction Melting Furnace1

Small Induction Melting Machine

[Integrated Small Induction Melting Furnace] is designed for melting 1g – 15kg gold, silver, platinum, it is also suitable to melt other precious metals.

 [small induction furnace working principle ]



This furnace is designed fbased on the latest and most advanced IGBT induction technology, This is compact design with water pump, power cabinet, and melting chamber combined into one,. Graphite crucible & quartz crucible can be selected according to different types metals, graphite crucible is adopted when melt gold, silver, copper, while when platinum, Palladium is melted, we will choose the quartz crucible which can reach temperature up to 2000C, CDOCAST  Small Integrated inducion crucible furnace can maximize working area. This furnace is ideal choice for your small jewelry shop, university lab ..etc

[Small Integrated inducion melting furnace Feature]



  1. Advanced metal melting equipment for gold, silver, copper and some other precious metals
  2. Apply IGBT Mould technology, can continuous working with 24hrs
  3. 100% full loading, with ability of 24hrs continuous working
  4. Compact design with small size and low weight, maximum reduce
  5. Quick temperature rise, only 3 minutes can melt one batch, electricity saving, low melting cost with high efficiency

Highlight:

  1. Noise reduction
  2. Better protection for power component
  3. Fast melting rate
  4. Low unit consumption
  5. 2 year warranty
  6. If any quality problem in the warranty time , CDOCAST provide you the refund
Model numberCDO-26FLCDO-27FLCDO-28FLCDO-29FL
Applicable metalGold, Silver, Copper, Brass, Bronze, and their alloysGold, Silver, Copper, Brass, Bronze, and their alloysGold, Silver, Copper, Brass, Bronze, and their alloysGold, Silver, Copper, Brass, Bronze, and their alloys
Voltage380 V380 V380 V380 V
Power15 kw (adjustable)12 kw (adjustable)10 kw (adjustable)8 kw (adjustable)
Weight60 kg46 kg46 kg46 kg
Max capacityGold: 10-15 kgGold: 8-10 kgGold: 6-8 kgGold: 1-4 kg
Melting time3-5 min3-5 min3-5 min3-5 min
Dimension50*50*100cm50*50*100cm40*40*90cm40*40*90cm
Max temperature1800℃1800℃1600℃1600℃
Temperature control k-typeOptionalOptionalOptionalOptional
Water pumpEquippedEquippedEquippedEquipped

11-15kg Manual Tilting Small Induction Melter1

Small Induction Melting Machine
Small Induction Melting Machine
Small Induction Melting Machine

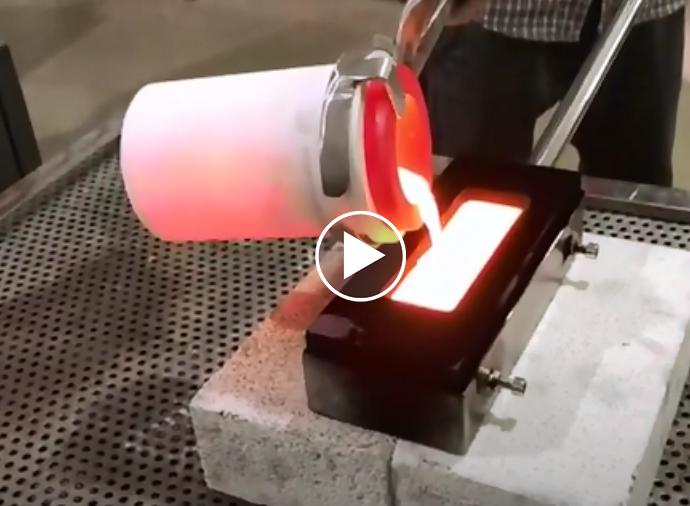

This small manual tilting induction melter is designed for small quantity metal melting. This furnace can be suitable for melt gold, silver, platinum copper, mostly all ferrous metal and non ferrous metals, It have rapid temperature rise speed which can reach 1800C within 3 minutes, and power supply range from 10kw-35kw.The manual tilting system enhances the tilting process easy and convenient, moreover, this design also is economical which is an ideal choice for the small casting, jewelry DIY, workshop, goldsmith etc.

small manual tilting induction melter Feature:



  1. More than 5-15% power saving compare with existing system
  2. Super heat IGBT Technology is highly reliable and efficient
  3. Constannt full power from start to end
  4. No Molten metal is required for melting to start
  5. Hand manual tilting operated, which can be easy to pour out the molten metal
  6. Wide range of suitable parameters for different metal alloying
  7. Graphite or quartz crucible is choose to melt types of metals
  8. No noise during operation which can guarantee the most convenient operation environment.

Highlight:

  1. 2 year warranty
  2. Better protection for power component
  3. Handed tilting system
  4. Low energy consumption
  5. Optional LCD PARAMETER
  6. User friendly controls
ModelMF-15MF-25MF-35MF-45MF-70MF-90MF-110MF-160
MAX input power15KW25KW35KW45KW70KW90KW110KW160KW
MAX input current23A36A51A68A105A135A168A240A
Input voltageThree-phase 340V ~420V 50/60Hz
Oscillation frequency1K~20KHz
Requirement of cooling waterHydraulic pressure≥0.2Mpa≥0.3Mpa
Flow rate≥6L/Min≥20L/Min
Temperature of water≤45℃
Generator boxWeight28kg29kg52kg52kg57kg91kg99kg134kg
Volume51×28×49cm65×35×5878×40×8878×50×88
Transformer boxWeight35kg35kg35kg38kg52kg68kg95kg95kg
Volume62×30×53cm64×48×58

120-80kg Chain Motor Tilting Metal Melting Furnace1

chain tilting melting machine
Small Induction Melting Machine
10-50kg Push Out Small Induction Melting Machine1

[The chain motor tilting metal melting furnace]



The chain motor tilting melting furnace is designed mainly for 20-80kg capacity gold, silver ,copper melting ,the power supply range  from 25kw-80kw , The motor of the small induction furnace drives the chain to realize the tilting, stability and safety, Temperature control system comes with the furnace which can realize the whole melting process. Water pump is installed inside of the power cabinet which can guarantee the water cooling of the whole system. Both left and right side plates are made of the heavy duty aluminum casting for higher strength.

[motor tilting metal melting furnace feature]



  1. Ideal For 20-80kg ferrous metal & non-ferrous foundries, also for small gold mine
  2. Designed for fastest melting speed at lowest cost.
  3. Highly reliable and efficient IGBT based inverter design can greatest save energy consumption
  4. Types of safety alarm system is installed to guarantee the operation more safe for the operator, like leakage water alarm, short current, over-voltage system..etc
  5. With this furnace, tilting control becomes more flexible and also titling speeds can easily be adjusted.

[chain motor tilting metal melting furnace Highlight]



  1. Highest efficiency &Lower power consumption
  2. Lowest cost production and trouble free operation &Power Optimizer
  3. Two year free warranty
  4. 10-20% lesser power requirement
ModelFe, ssCu, Au, AgAl, Al-alloyModelFe, ssCu, Au, AgAl, Al-alloy
MF-153kg10kg3kgMF-7025kg80kg25kg
MF-255kg20kg5kgMF-9040kg120kg40kg
MF-3510kg30kg10kgMF-11050kg150kg50kg
MF-4518kg50kg18kgMF-160100kg250kg100kg
Remark: Above melting capacity sheet for general reference;
Melting duration:  When the crucible is hot,20~30min./workload;
When the crucible is cold(first melt),40~50min./ workload.

110-50kg Push Out Small Induction Melting Machine1

10-50kg Push Out Small Induction Melting Machine
10-50kg Push Out Small Induction Melting Machine1
10-50kg Push Out Small Induction Melting Machine

CDOCAST PUSHOUT small induction meling machine  is a highly efficient crucible melting furnace. It is compact design with the latest technology, the crucible is placed inside the special design induction coil, the induction coil will be protected by a high temperature asbestos board and refractory material to guarantee the safety during the operation. This induction coil can be automatically lift up and down by hydraulically/mechanically.

The crucible is placed on a high High-temperature quartz basetof the small induction melter, a certain distance from the ground, convenient for workers to pinch out, after complete melting in the crucible, the induction coil will lift down, and the crucible will come out for worker to take out for pouring,  it is very convenience for some investment casting industry, only two labourers are needed to carry the crucible and pour into the mould anywhere.

  1. IGBT Technology and design for the 24hrs continuous operation
  2. Light weight and installed in few minutes, No civil work is required, can greatly save the end-users space
  3. Noiseless operation with friendly controls system
  4. An electromagnetic stirring system can be added to control the electromagnetic stirring force
  5. Heavy high pressure aluminum body create free magnetic path within the hot pot so the maximum efficiency can be guaranteed
