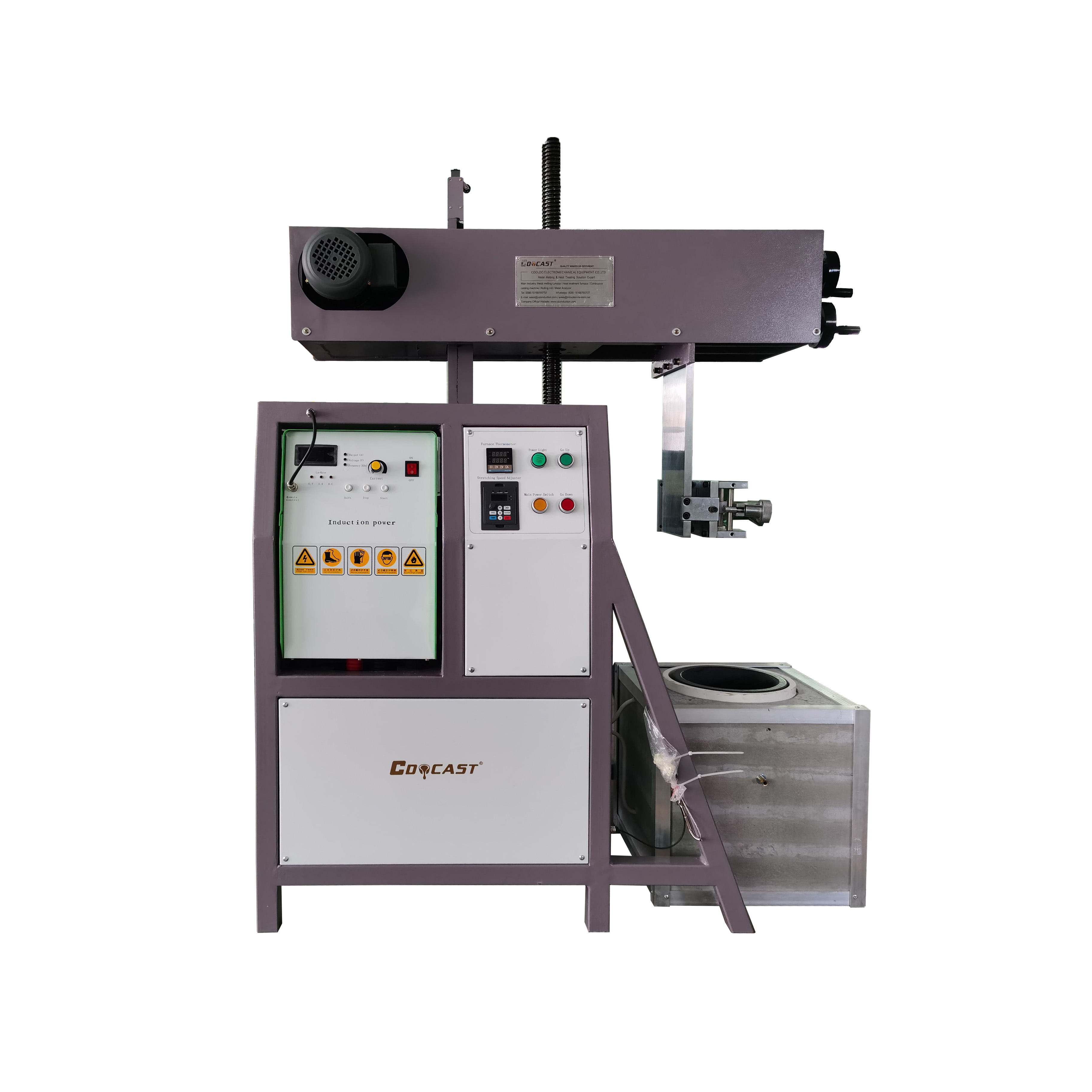

Small Upward Continuous Casting Machine

Small Upward Continuous Casting Machine

CDOCAST Small upward casting machine is ideal for the production for gold, silver, copper wires, sheets, or tubes, with the outstanding properties of high conductivity and good drawability. Our Continuous caster have been designed with the most up-to-date technoloy to give you semi-finished production with the best quality in the shortest time.


1, 24 Hrs Continuously working
2, Can stop Anytime As you like
3, Suitable for Copper, gold, Silver

[Upward Continuous Casting Machine]


Upward continuous Casting Machine is a kind of equipment specially used for the production of special alloy materials, such as pure silver, gold , Copper, It includes melting, crystallization and traction.

It Adopt the technology of  medium-frequency induction heating, , it is a kind of frequency conversion device that converts three-phase frequency current into single-phase medium-frequency current, mainly used for melting various metal materials and their alloys.  It is mainly used for the melting of various metal materials and their alloys.The machine is composed of three-phase bridge full control rectifier circuit and parallel inverter circuit. The control part USES the integrated circuit to realize the microcomputer control, compared with other lines, has the advanced technology, the structure is simple, the performance is stable and reliable. The  machine  is also designed with a variety of current, voltage overload of the rapid protection function, so that the operation of the product is very reliable.Suitable for long or intermittent work.

[Upward Casting Machine Casting Process]

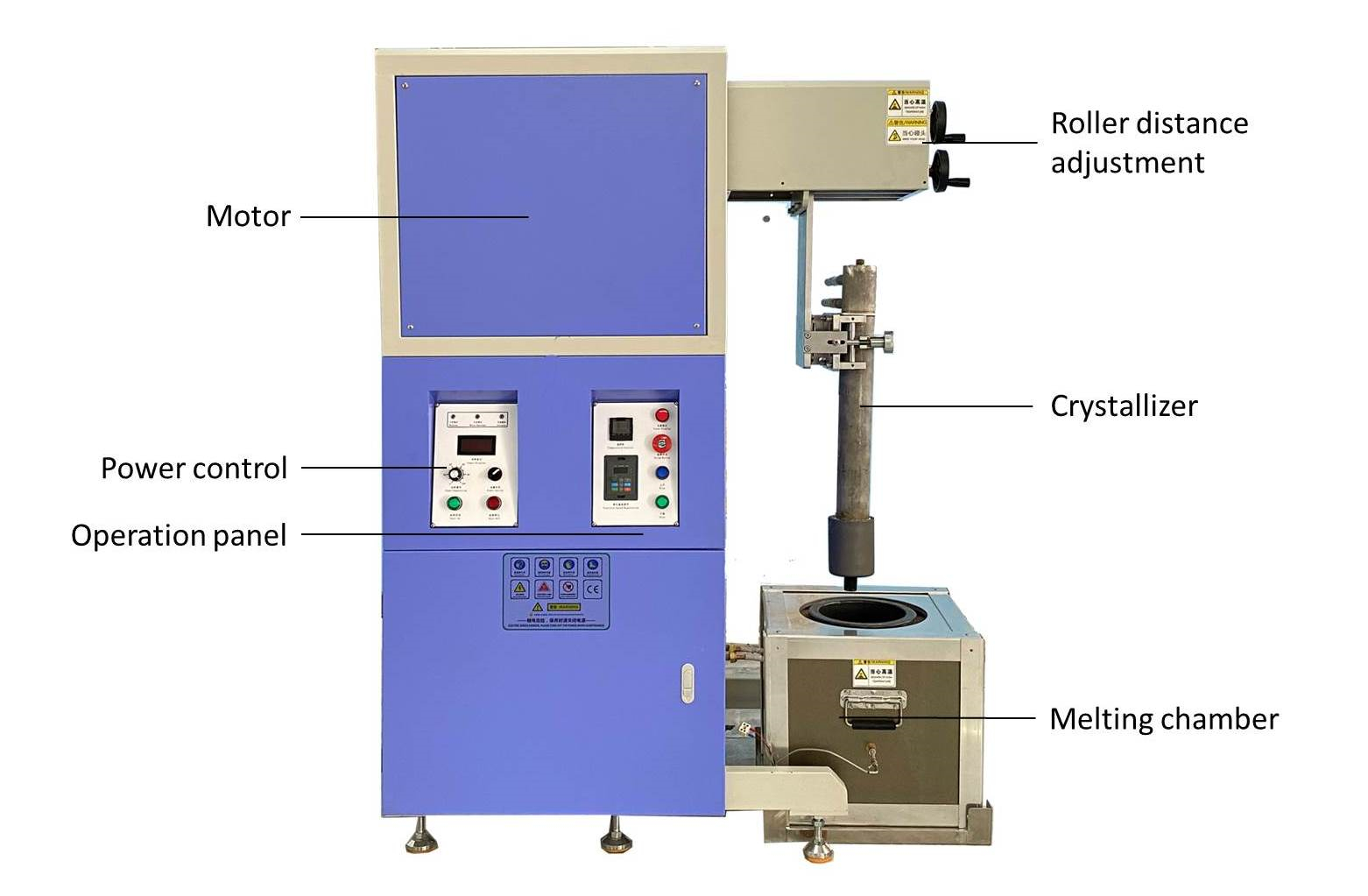

After the raw material is melted to the drawing temperature, the melting furnace with lifting mechanism is lifted upwards to immerse the crystal in the metallic liquid, the crystal is made of graphite, the crystal has a water jacket for the quasi-cooling of the metallic liquid, the metallic liquid in the graphite crystal is cooled by the cooling water and cured, and the wire is finally wound on the reel.


[Upward  Continuous Casting Machine Application]

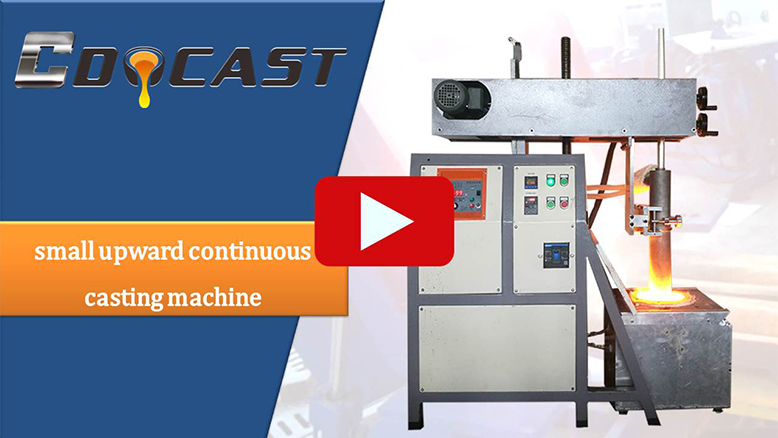

Video Of  small upward continuous casting machine:

small upward-continuous casting machine

Parameter of Small Upward Continuous Casting Machine

Model number CDO-UP45
Voltage 3P, 380V, 50/60Hz
Power 45kw
Applicable metal Gold, K-Gold, Silver, Copper, Brass, Bronze, and their alloys
Maximum temperature 1600℃
Temperature control range 0-1300℃
Melting time 30 minutes
Drawing speed 1000mm per minute
Cast scope Metals Rod, Pipe, Plate
Dimensions 120(L)*63(W)*150(H)cm
Weight 400kg
